Most Useful Software Architecture Patterns

A MAN is KNOWN by the DESIGN he keeps

Layered Pattern (n-tier)

The layered architecture pattern is one of the most common patterns. The idea behind a Layered pattern is that components with the same functionalities will be organized into horizontal layers. As a result, each layer performs a specific role within the application.

In this pattern, we do not have a restriction on the number of layers that the application can have. In this, we also promote the concept of separation of concerns. The layered pattern style abstracts the view of the software as a whole; while providing enough detail to understand the roles and responsibilities of individual layers and the relationship between them. A typical implementation of the layered pattern could be:

• UI / Presentation Layer: Render and run the user interface, and send requests to the server application.
• Application Layer: This contains the presentation layer, the application layer, the domain layer, and the persistence layer.
• Domain / Business Layer: This layer contains all the business logic, entities, events, and other object types that contain Business Logic.
• Database Layer: This would be the data layer and would be used for the persistence of data, which would be used by the application server.

Examples: Desktop Applications, E-Commerce or Web-Based Applications, etc.

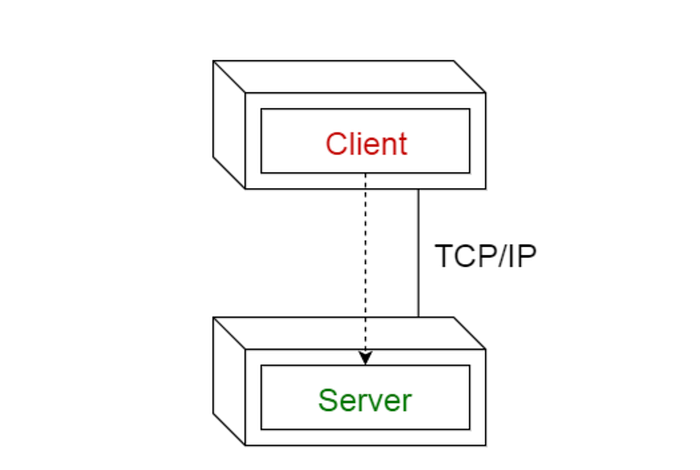

Client-Server Pattern

It’s the simplest architecture pattern, which consists of a server and multiple clients. This pattern is a distributed structure that partitions tasks/workloads between the providers of a resource/service, called servers, and service requesters called clients.

In the client-server pattern, when the client sends a request for data to the server, the server accepts the requested process and responds with the required data to the client. Clients do not share any of their resources.

Examples: Email, Document Sharing, Banking, etc.

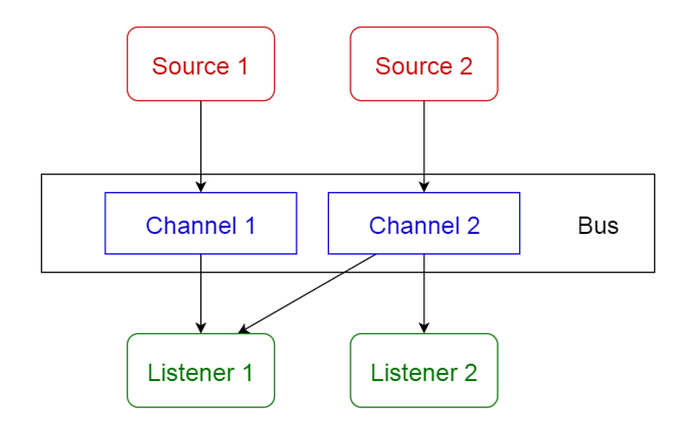

Event-Bus Pattern (Event-Driven Architecture)

This pattern is a distributed asynchronous architecture pattern to create highly scalable reactive applications. The suits for every level application stack from small to complex ones. The main idea of this pattern is delivering and processing events asynchronously.

This pattern has four major components:

1. Event Source
2. Event Listener
3. Channel
4. Event Bus.

Sources publish messages to particular channels on an event bus. Listeners subscribe to particular channels. Listeners get messages that are published to a channel to which they have subscribed.

Examples: e-commerce, mobile application development, notification services, etc.

Broker Pattern

This pattern can be used to structure distributed systems with decoupled components that interact by remote service invocations. A broker component is responsible for the coordination of communication among components; such as forwarding requests, as well as transmitting results and exceptions.

Servers publish their capabilities (services and characteristics) to a broker. Clients request a service from the broker, and the broker then redirects the client to a suitable service from its registry.

Examples: Message broker software programs, Apache ActiveMQ, Apache Kafka, RabbitMQ, JBoss Messaging, etc.

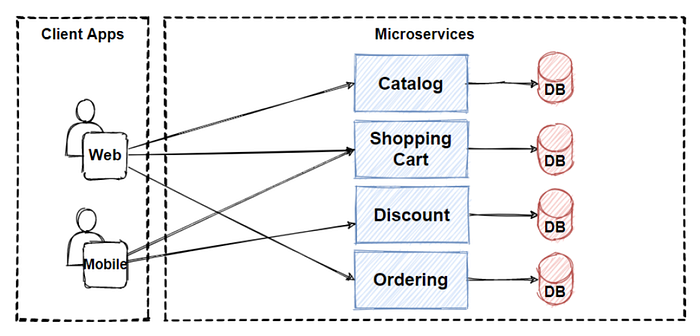

Microservices Pattern

In this pattern, services communicate by using synchronous protocols like HTTP/REST or asynchronous protocols like AMQP (Advanced Message Queuing Protocol). Services can be developed and deployed independently, and each service will have its database from other services. Data consistency between services is maintained by using the Saga Pattern (a sequence of local transactions).

Examples: can be implemented on many use cases, especially extensive data pipeline

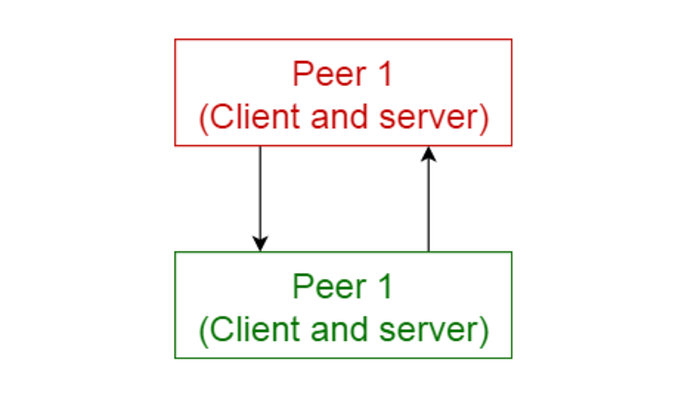

Peer-to-Peer Pattern

As in the common client-server architecture, multiple clients communicate with a central server. But a peer-to-peer (P2P) pattern consists of a decentralized network of peers

In this pattern, nodes behave like clients and servers. Peers may function both as a client, requesting services from other peers, and as a server, providing services to other peers.

P2P networks distribute the workload between peers, and all peers contribute and consume resources within the network without the need for a centralized server. A peer may change its role dynamically with time.

Examples: file-sharing networks, multimedia protocols PDTP, P2PTV, bitcoin, blockchain, etc.

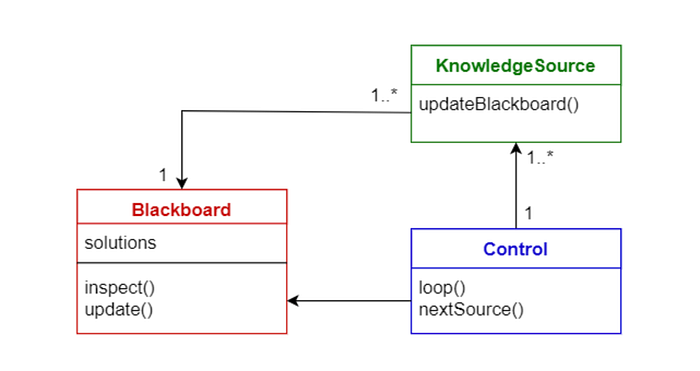

Blackboard Pattern

This pattern is useful for problems for which no deterministic solution strategies are known.

All the components have access to the blackboard. Components may produce new data objects which will be added to the blackboard. Components look for specific types of data on the blackboard and would find those by pattern matching with the existing knowledge source.

This pattern consists of three main components:

• blackboard: a structured global memory containing objects from the solution space
• knowledge source: specialized modules with their representation
• control component: selects, configures, and executes modules.

Examples: Speed Recognition, Protein structure identification, sonar signal interpretation, machine learning programs, etc.

Cheers!
